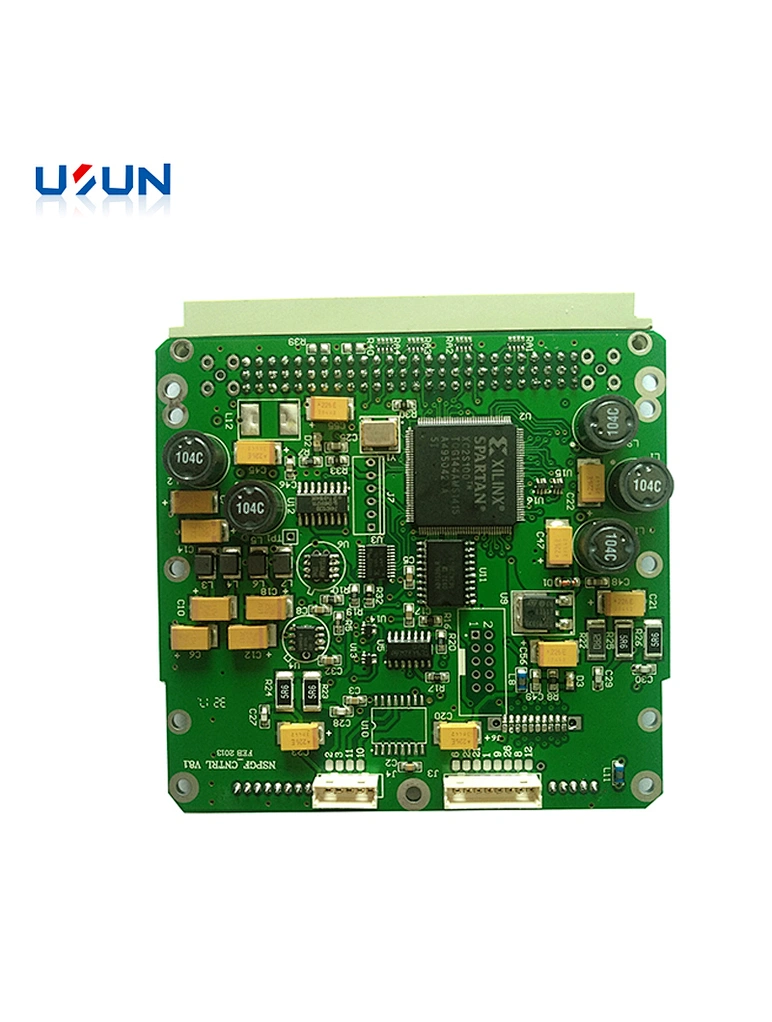

Welding SMT Service OEM Printed Circuit Board PCB Assembly PCBA Manufacture Custom Other PCB & PCBA Wireless Charging Pcba
JL17-b
Quantity
| PCB Assembly Capabilities | ||
| Features | Economic PCBA | Standard PCBA |
| Assembly Types | Single sided placement (SMT/Thru-hole) | Single & double sided placement (SMT/Thru-hole) |
| Board Types | rigid，flex，rigid-flex，Aluminum | |
| Thickness | 0.8mm - 1.6mm | 0.4mm - 3.0mm |
| Order Volume | 2 - 50 pcs | 2 - 80000 pcs |
| Surface Finish | Limited by specific options | No limit |
| PCB Color | Limited by specific options | No limit |
| Delivery Format | Single PCB, Panel with mouse bites | Single PCB, Panel with mouse bites, Panel with V-cut |
| Edge Rails | Not necessary | Necessary |
| Fiducials | Not necessary | Necessary |
| Minimum Package | 402 | 201 |
| Minimum IC Pin Spacing | 0.4mm | 0.35mm |
| Minimum BGA Spacing | 0.5mm | 0.5mm |
| Reflow temperature | 255+/-5 °C （not adjustable) | 240+/-5 °C |
| SPI | No | Yes |
| AOI | Yes | Yes |
| Visual Inspection | Yes | Yes |
| X-ray Inspection | Yes | Yes |
| Build time | 1 - 3 days | ≥ 4 days |
